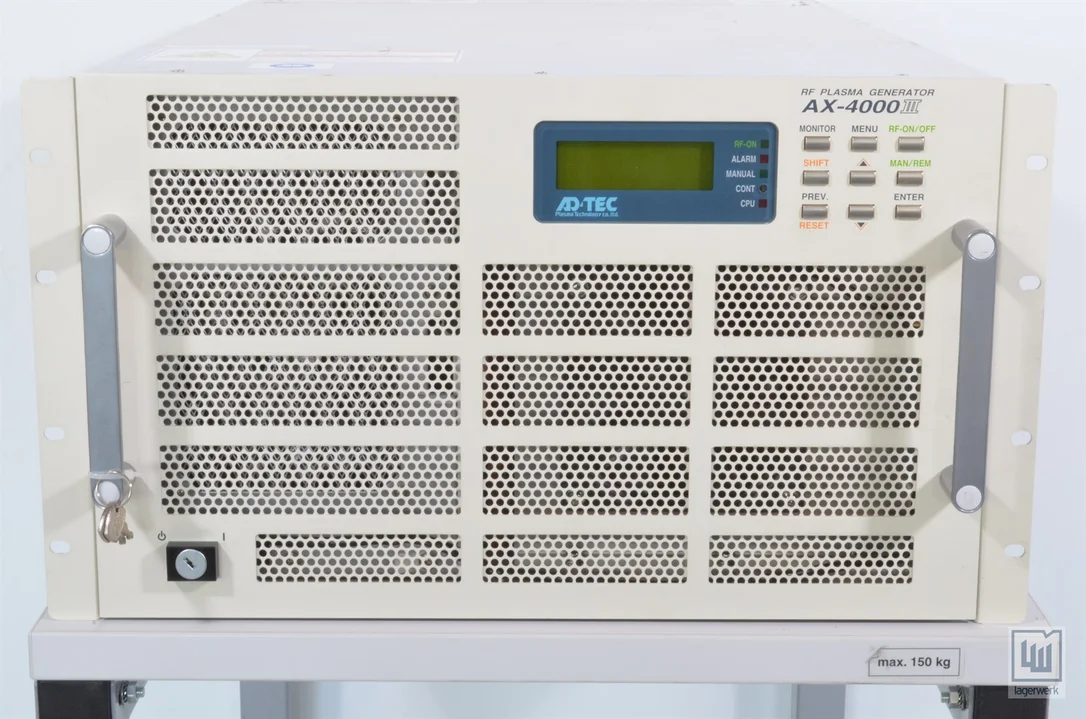

ADTEC AX-4000III-40M / AX 4000III 40M / AX4000III40M, RF Plasma Generator

Description

ADTEC RF Plasma Generator AX-4000III-40M

Hochfrequenz Generator
/ 4kW, 40MHz /

Profibus Interface

Details:

Model AX-4000III-40M
Output power 4kW
Output settable range 0~4000W at 50Ω
Output deviation ±1% of Set Value or 8W(whichever is larger) at 25℃
Output frequency 40.68MHz
Frequency stability ±0.01% (10℃ – 40℃)
Output impedance 50Ω ± 2Ω
Output harmonic distortion Less than -40dB of fundamental wave
Remote control connection Analog / Profibus standard
Output connector 7/16-type Receptacle
Cooling method Forced Air
Power supply 3Ф,4wire 50~60Hz, 400V(±10%), 11kVA
Protection features Reflected power level+time / Reflected power limit / Current value+time / Current limit / Amp temperature / Reflected power control
Dimensions W 430 × D 670 × H 266 mm (excluding protruding parts)
